Toepasselijke Industrie: | Hotels, Kledingstukwinkels, Bouwmateriaalwinkels, MachinesReparatiewerkplaatsen, Productieinstallati | Toonzaalplaats: | niets |
---|---|---|---|
Video uitgaand-inspectie: | Verstrekt | Het Rapport van de machinestest: | Verstrekt |
Marketing Type: | Nieuw Product 2020 | Garantie van kerncomponenten: | 1 jaar |
Kerncomponenten: | PLC | Voorwaarde: | Nieuw |
Gewicht: | 250 kg, ong. 250 kg | Macht: | 380V |
Garantie: | 1 jaar | Gewicht (kg): | 250 kg |
Maximumbereik: | 1813 mm | Maximumnuttige lading: | 23,9 kg |
Geschatte nuttige lading: | 20 kg | Stel herhaalbaarheid (ISO 9283): | ± 0,04 mm |
Aantal assen: | 6 | Voetafdruk: | 430,5 mm x 370 mm |
Omgevingstemperatuur tijdens verrichting: | 5 °C aan 45 °C (278 K aan 318 K) | Controlemechanisme: | KR C4 |
Onderwijs tegenhanger: | KUKA smartPAD | Haven: | Shanghai |
item | value |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other |

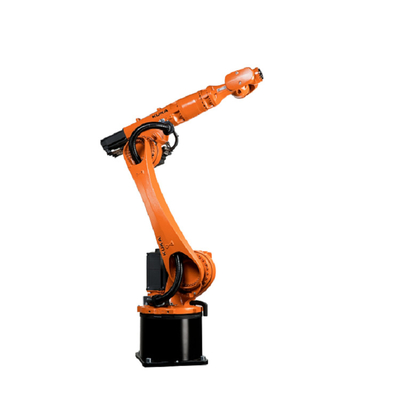

Name | Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC |
Condition | New |
Place of Origin | China |
Shanghai | |
Brand Name | KUKA |
Weight | 250kg |
Power | 380v |
Warranty | 1 Year |
Weight (KG) | 250kg |

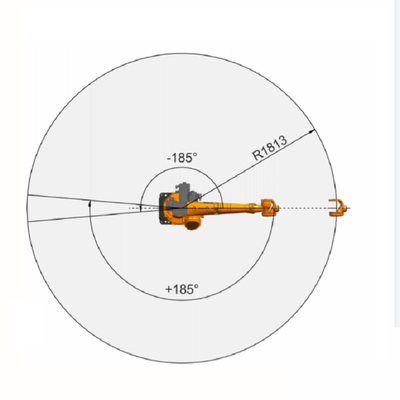

Maximum reach | 1813 mm |
Maximum payload | 23.9 kg |
Rated payload | 20 kg |
Pose repeatability (ISO 9283) | ± 0.04 mm |
Number of axes | 6 |
Footprint | 430.5 mm x 370 mm |
Weight | approx. 250 kg |
Ambient temperature during operation | 5 °C to 45 °C (278 K to 318 K) |
Controller | KR C4 |
Teach pendant | KUKA smartPAD |
Production Name | Welding Robot |
Power supply | 20 ~ 25V |
Protection rating | IP54 |
Weight | 1.25kg |
