Plaats van herkomst: | CHINA |
---|---|
Merknaam: | ABB |
Modelnummer: | IRB6700-200/2.6 |
Min. bestelaantal: | 1 reeks |
Prijs: | US $33510 |
Verpakking Details: | ÉÉN grote industriële totale de post robotachtige 6 as van ABB ABB IRB6700 6 het Wapenassemblage van |
Levertijd: | 30-60 het werkdagen |
Betalingscondities: | L/C, T/T, Western Union |
Levering vermogen: | 100 reeksen/maand |
NAAM: | ABB IRB6700 6 het Wapenassemblage van de As Industrieel Robot Oppoetsend het Plukken van de Lassenro | Toepassing: | Assemblage Oppoetsend het Plukken Lassen |
---|---|---|---|
Nuttige lading: | 200kg | Bereik: | 2600mm |
Aantal Assen: | 6 | Materiaal: | aluminiumlegering |
Bescherming: | Norm: IP67. | Steun: | Omgekeerde vloer, |
Positieherhaalbaarheid: | 0.05mm | Controlemechanisme: | IRC5 enig Kabinetsirc5 PMC Comité Opgezet Controlemechanisme |

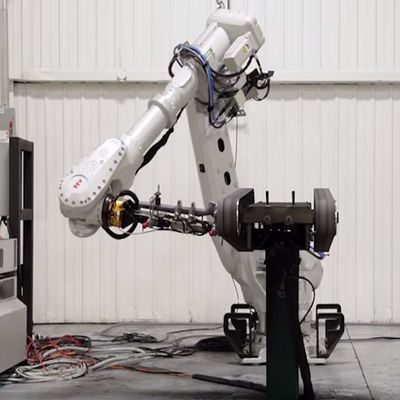

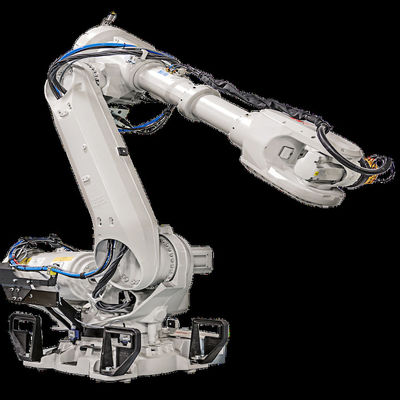

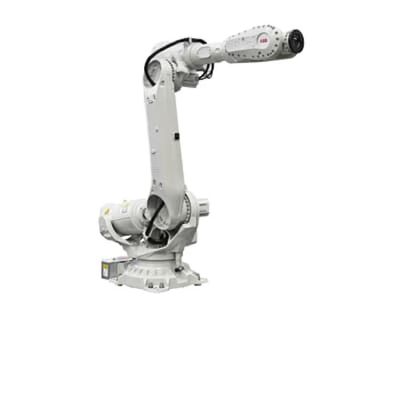

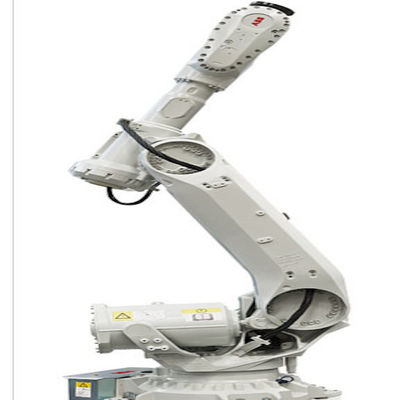

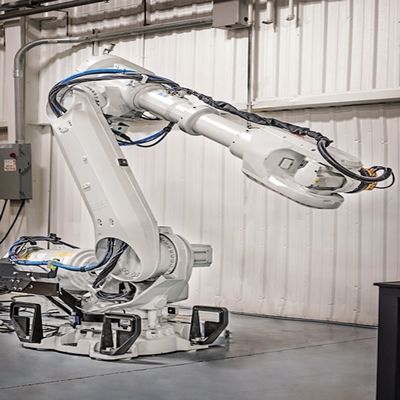

ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding robot and Payload 200Kg Reach 2600mm
Specification
Robot version | Reach(m) | Handling capacity(kg) | Center of gravity(kg) | Wrist torque(Nm) |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 200 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 155 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 150 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 300 | 300 | 1825 |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 175 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 140 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 145 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 270 | 300 | 1825 |
Number of axes 6 | ||||
Protection | Std:IP67.Option:Foundry Plus 2 | |||
Mounting | Floor,inverted | |||
Controller |
IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller |
Performance(according to ISO 9283)
Position repeatability |
Path repeatability |
|
IRB 6700-200/2.60 | 0.05mm | 0.10mm |
IRB 6700-155/2.85 | 0.10mm | 0.15mm |
IRB 6700-150/3.20 | 0.10mm | 0.15mm |
IRB 6700-300/2.70 | 0.10mm | 0.15mm |
Technical information
Electrical Connections | ||
Supply voltage | 200-600 V,50/60 Hz | |
Energy consumption | 2.8KW | |
Physical | ||
Robot base | 1004x720 mm | |
Robot weight(without Dress Pack) | ||
IRB 6700-200/2.60 | 1250kg | |
IRB 6700-155/2.85 | 1260kg | |
IRB 6700-150/3.20 | 1280kg | |
IRB 6700-300/2.70 | 1525kg |
