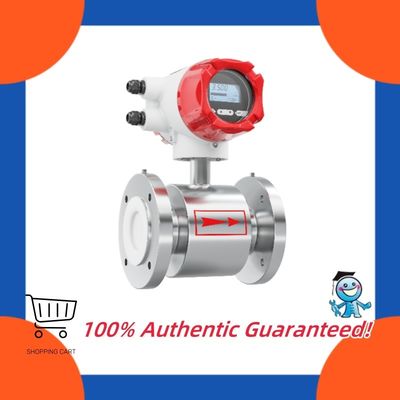

Supmea LDG-SUP-A100 Electromagnetic Flowmeter
Product Overview
The Supmea LDG-SUP-A100 Electromagnetic Flowmeter is a rugged, high-accuracy device built for reliable flow measurement in industrial liquid processes. Employing electromagnetic induction, it offers non-obstructive detection for conductive fluids, ensuring minimal pressure drop and long-term stability. With IP67 protection and corrosion-resistant liners, the LDG-SUP-A100 is perfect for chemical, wastewater, and mining applications. Its versatile outputs (4-20 mA, HART, RS485) and wide pipe size range (DN10 to DN3000) enable easy integration, providing cost-effective, low-maintenance solutions for flow management.
Key Features
- Durable Construction: IP67 enclosure and robust liners withstand harsh industrial conditions.
- Wide Pipe Compatibility: Sizes from DN10 to DN3000 for diverse installations.
- Low Pressure Drop: No moving parts ensure efficient flow without obstruction.
- Corrosion Resistance: PTFE or rubber liners for aggressive media.
- Multiple Outputs: 4-20 mA HART, RS485, and pulse for system compatibility.
- High Turndown Ratio: Measures flows from 0.1 to 15 m/s accurately.

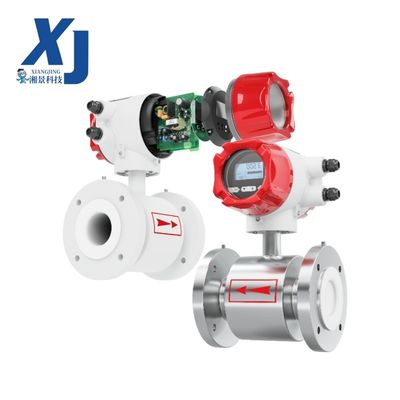

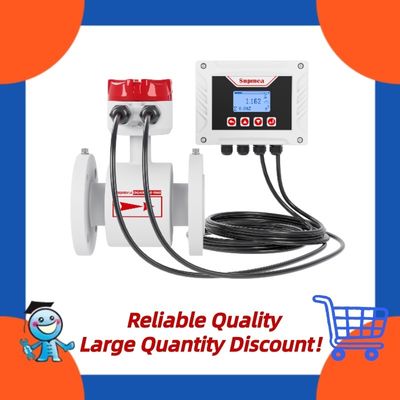

- Easy Integration: Remote or integral transmitter options for flexible setup.
- Long Service Life: Maintenance-free design with electrode protection.
Technical Specifications
| Parameter |
Specification |
| Flow Range |
0.1 to 15 m/s |
| Accuracy |
±0.5% of reading (≥DN300: ±0.5% + 1 mm/s) |
| Repeatability |
±0.1% of reading |
| Size Range |
DN10 to DN3000 (0.5" to 120") |
| Conductivity |
≥5 μS/cm |
| Liner Materials |
PTFE, PFA, Hard Rubber, Polyurethane |
| Electrode Materials |
316L SS, Hastelloy C, Titanium, Tantalum |
| Output Signals |
4-20 mA HART, RS485, Pulse/Frequency |
| Power Supply |
24 VDC (16–36 V), 110/220 VAC (optional) |
| Temperature Range |
Liner: -20°C to 120°C; Ambient: -20°C to 60°C |
| Pressure Rating |
ANSI Class 150 to 600 |
| Enclosure Rating |
IP67 |
| Certifications |
CE, RoHS, Exd IIC T6 (optional) |
Applications
The Supmea LDG-SUP-A100 Electromagnetic Flowmeter is built for durable flow measurement in industrial settings:
- Chemical Industry: Monitors corrosive liquids in production lines.
- Wastewater Treatment: Tracks flow in sewage and sludge systems.
- Mining: Handles abrasive slurries with robust liners.
- Pharmaceutical: Ensures accurate dosing in hygienic processes.
- Power Plant: Measures cooling water and chemical flows.
Frequently Asked Questions
Does the LDG-SUP-A100 require straight pipe runs?
No, it can be installed with minimal straight pipe, reducing installation costs.
What is the minimum conductivity for measurement?
Liquids must have ≥5 μS/cm conductivity for accurate readings.
Is the flowmeter suitable for abrasive media?
Yes, hard rubber or polyurethane liners protect against abrasion.
How does HART communication benefit integration?
It allows remote configuration and diagnostics, simplifying system management.
Can the LDG-SUP-A100 be used in hazardous areas?
Yes, optional Exd IIC T6 certification ensures safe operation.
