KOSO 210C 230C Concentric Segmental Ball Valves Power Plant Petrochemical Processing

1
MOQ
US $2500-3000 per set
Prijs
KOSO 210C 230C Concentric Segmental Ball Valves Power Plant Petrochemical Processing
Kenmerken Galerij Productomschrijving Beoordelingen & Recensies Verzoek om een Citaat
Kenmerken
Specificaties
Ventieltype: Concentrische segmentkogelkraan
Nominale diameter: 1(25A)-12(300A), 1(25A)-18(450A), 6(150A)-24(600A)
Vloeibare temperatuur: -45 tot +500°C
Verbindingstype: Wafeltje, van een flens voorzien (RF, FF, RTJ), van een flens voorzien (RF, RTJ)
Lichaamsmateriaal: SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M, SCS13A, SCS14A
Materiaal schijf: SCS14A
Schijfbehandeling: Met hard oppervlak of stelliet
Materiaal zittingring: Versterkte PTFE, SUS316, verchroomd, stelliet, SUS304, 316
Rangeability: 100:1, 1000:1, geschatte equivalent%
Lekkage klasse: ANSI-klasse VI, dunne plaat (nominaal), dikke plaat (nominaal)
Markeren:

KOSO 210C ball valve power plant

,

segmental ball valve petrochemical processing

,

pneumatic control valve with warranty
Basis informatie
Plaats van herkomst: Japan
Merknaam: KOSO
Modelnummer: 210C, 230C
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: kartonnen/houten kistverpakking
Levertijd: 6-8 weken
Betalingscondities: T/T
Levering vermogen: 800 reeksen per jaar
Productomschrijving

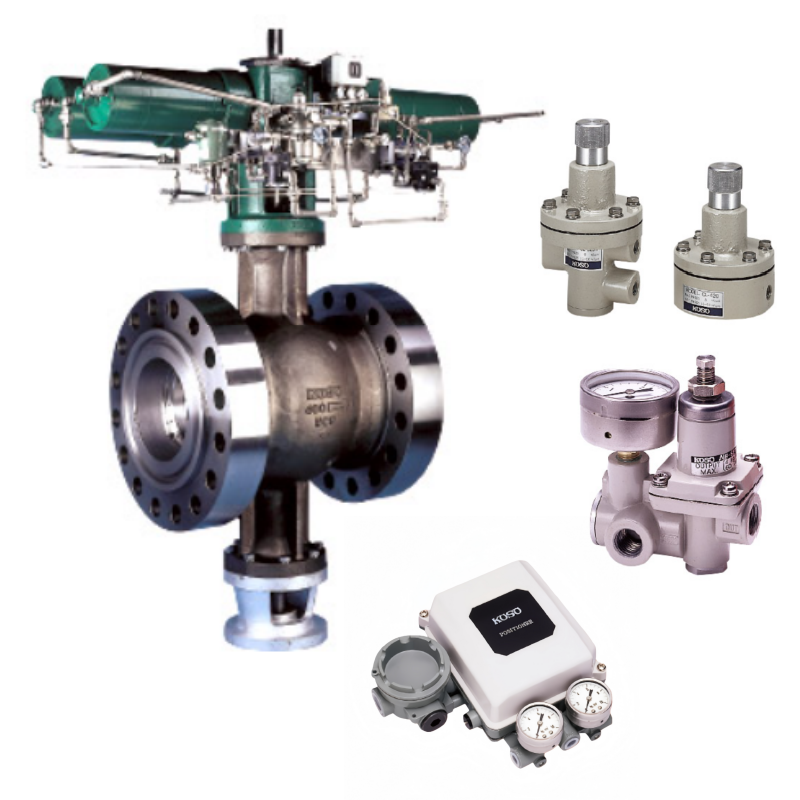

KOSO 210C 230C Concentric Segmental Ball Valves
Product Overview

KOSO 210C and 230C Concentric Segmental Ball Valves are high-performance control valves designed for precise flow regulation in harsh industrial environments. With a segmental ball structure, they offer excellent control performance, wide rangeability, and reliable sealing. Suitable for power plants, petrochemical, oil and gas, and other heavy-duty applications.

Features
  • Concentric segmental ball design for stable flow control
  • High rangeability up to 1000:1 for accurate regulation
  • Metal-to-metal or soft sealing for tight shut-off
  • Robust body structure for high pressure and temperature
  • Suitable for gas, liquid, steam and fibrous media
  • Low flow resistance and high flow capacity
  • Wide compatibility with pneumatic and electric actuators
  • Long service life in severe working conditions
Technical Specifications
Brand KOSO
Model 210C, 230C
Type Concentric Segmental Ball Valve
Size Range 1 inch to 24 inch
Pressure Class ANSI Class 150‑1500, JIS 10K‑63K
Temperature Range -45℃ to +500℃
End Connection Flanged, Wafer
Body Material Carbon Steel, Stainless Steel
Seal Material Reinforced PTFE, Metal
Leakage Class ANSI Class VI
Actuator Pneumatic, Electric
Applications
  • Thermal power plants
  • Petrochemical industry
  • Oil and gas refineries
  • Chemical processing
  • Boiler and steam systems
  • High temperature fluid pipelines
  • Industrial process flow control
FAQ

Q: What is the difference between 210C and 230C?

A: They differ in size range, pressure rating and application scope. 210C is for general industrial use, 230C for higher pressure and larger pipelines.

Q: Are these valves suitable for steam service?

A: Yes, they work well for high temperature steam, gas and liquid applications.

Q: Do you provide customized valves?

A: Yes, we support size, material and connection customization.
