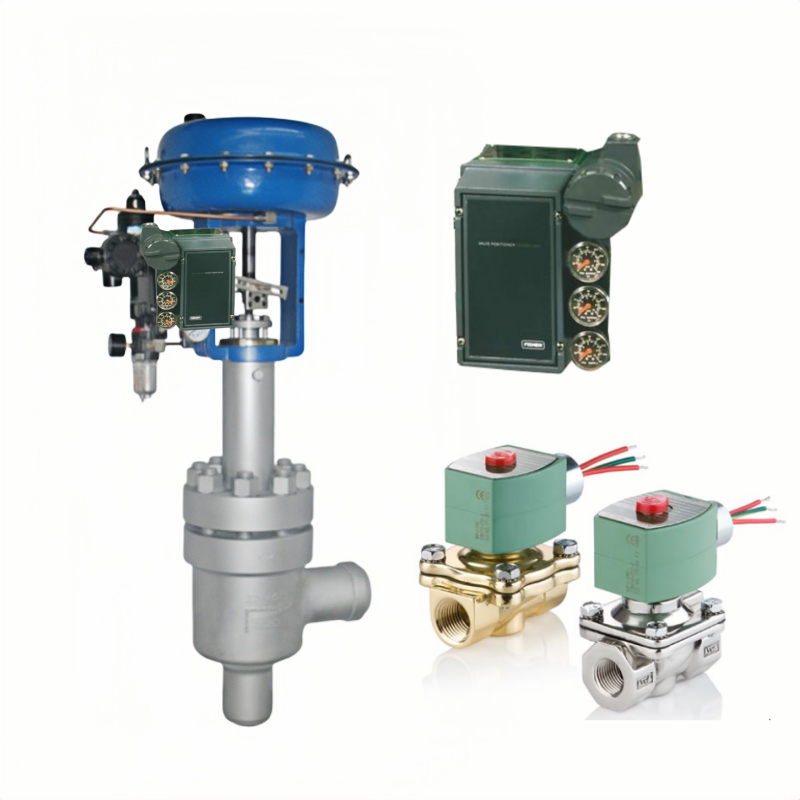

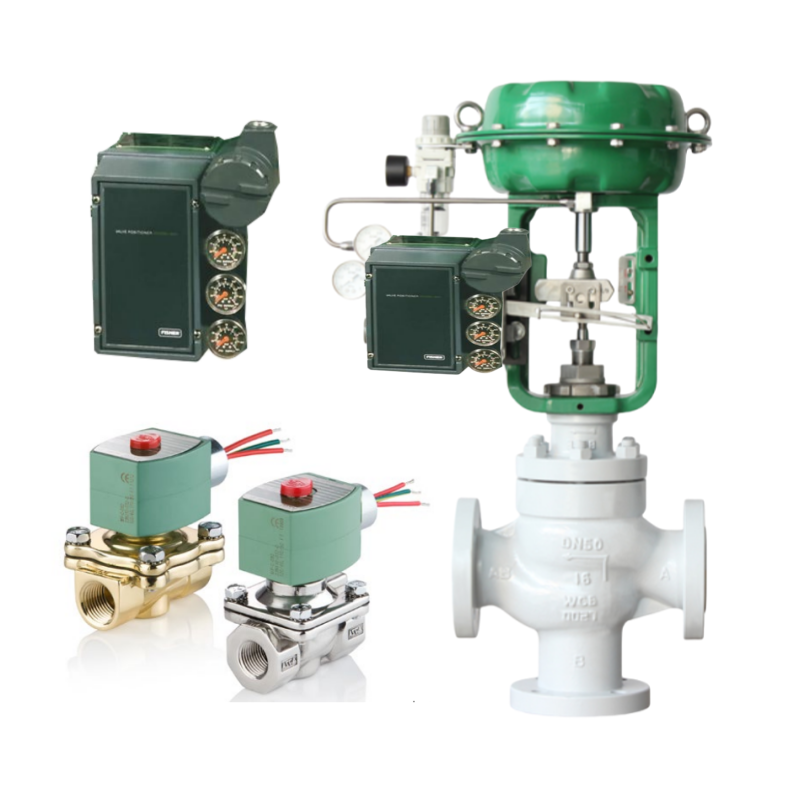

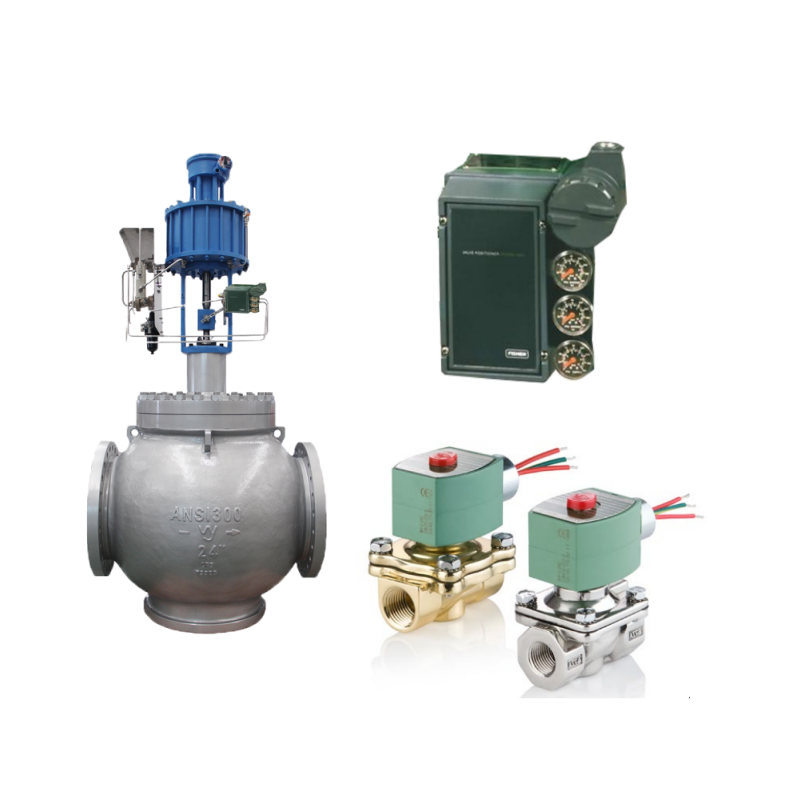

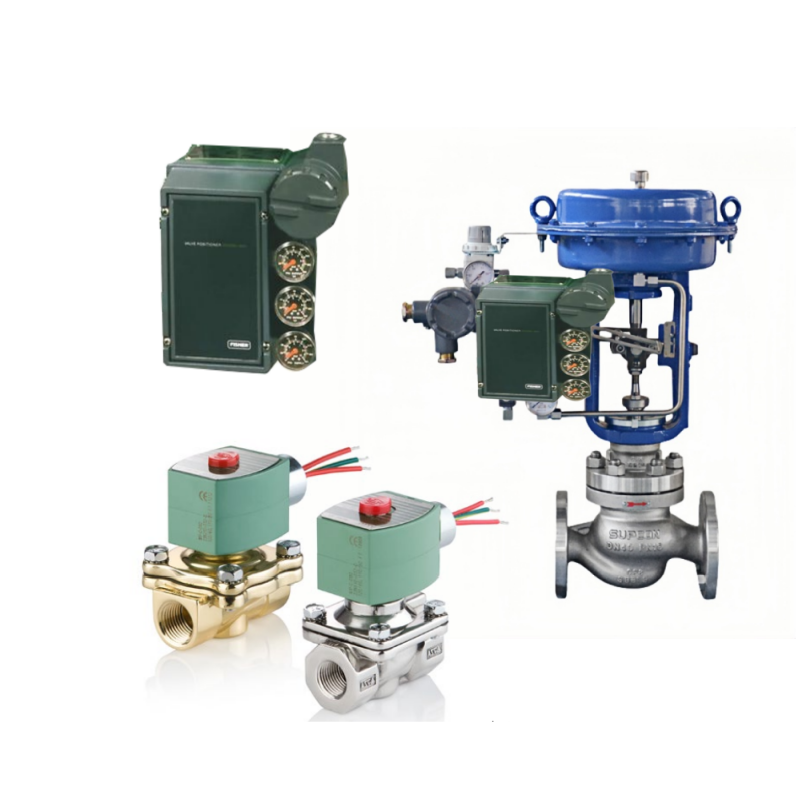

Emerson Fisher 3600 Series 3620J Electro Pneumatic Valve Positioner with ASCO Solenoid Valves

1
MOQ
1850 dollars
Prijs
Emerson Fisher 3600 Series 3620J Electro Pneumatic Valve Positioner with ASCO Solenoid Valves
Kenmerken Galerij Productomschrijving Beoordelingen & Recensies Verzoek om een Citaat
Kenmerken
Specificaties
Communicatieprotocol: 4-20mA analoog
Gegevensinterface: Bedraad
Diagnostiek: Nee
Ingangssignaal: Elektrisch
Maximale uitlaatdruk: 150 PSI
Montagetype: Verstuiver gemonteerd
Basis informatie
Plaats van herkomst: China
Merknaam: Fisher
Modelnummer: 3620J
Document: instruction-manual-fisher-3...74.pdf
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Doos + houten krat + beschermende verpakking
Levertijd: 60 dagen
Betalingscondities: T/T
Levering vermogen: 500 eenheden per jaar
Productomschrijving
Product Overview

The Fisher 3620J is a single-acting electro-pneumatic rotary valve positioner engineered for quick field installation and straightforward maintenance. It transforms a standard 4–20 mA signal into precise pneumatic control for Fisher 1051/1052/2052 actuators, making it the ideal upgrade path from pneumatic to electro-pneumatic operation using the integrated 3622 converter.

Key Features
  • One-piece mounting on actuator housing with cam roller ready in minutes
  • Tool-free cover removal for fast zero/span and minor loop gain adjustments
  • Built-in bypass valve option and diagnostic connection ports
  • Reversible action via simple reversing-plate adjustment
  • Robust IP54/IP64 enclosure with vent protection
  • Low air consumption reduces operating costs
Technical Specifications
Parameter Specification
Input Signal 4–20 mA DC constant current, split-range capable
Supply / Output Connections 1/4 NPT internal
Maximum Supply Pressure 10.3 bar (150 psig) or actuator limit
Steady-State Air Consumption 0.49 normal m³/h (18.2 scfh) @ 1.4 bar
Temperature Range –40 to 82 °C
Independent Linearity ±1.5% (direct), ±0.75% (reverse)
Hysteresis / Deadband 0.75% / 0.1% of span
Hazardous Area Approvals CSA, FM, ATEX, IECEx Intrinsically Safe & Explosion-proof
Weight 3.6 kg (8.0 lb)
Applications

Perfect for retrofits on existing rotary valves, plant expansions, or any installation where fast commissioning and minimal downtime are critical.

Frequently Asked Questions
Q: Do I need special tools to mount the 3620J?
A: No — only standard socket-head screws and a screwdriver are required.
Q: How do I change cams for different rotations?
A: Remove actuator cover plate, swap cam A/B/C, and realign indicator if needed.
Q: Is the positioner suitable for outdoor weather exposure?
A: Yes — mount vent on side or bottom for added weatherproofing.
