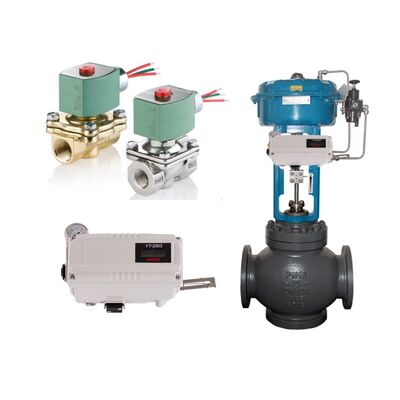

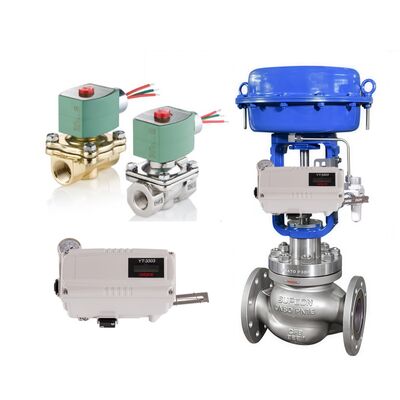

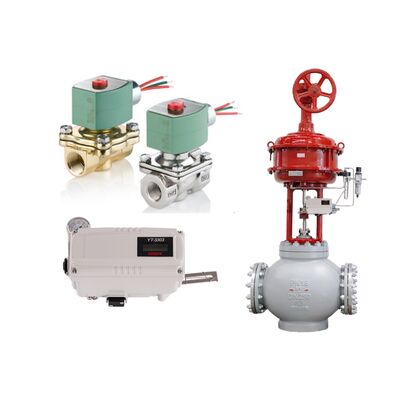

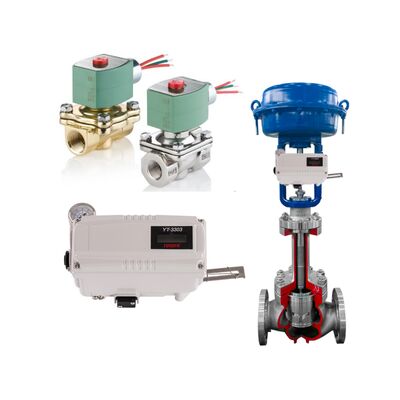

New High Quality Rotork YT-3303 Smart Digital Control Valve Positioner for Control Valves Industrial Automation

1
MOQ
1350 dollars
Prijs
New High Quality Rotork YT-3303 Smart Digital Control Valve Positioner for Control Valves Industrial Automation
Kenmerken Galerij Productomschrijving Beoordelingen & Recensies Verzoek om een Citaat
Kenmerken
Specificaties
Acteertype: Enkele / dubbel
Ingangssignaal: 4-20 MA DC
Devel druk: 0,14 tot 0,7 MPa (1,4 tot 7 bar)
Hartinfarct: 10 tot 150 mm / 55 tot 110°
Standaard type: -30 tot 85 °C (-22 tot 185 °F)
Buisingang: G 1/2 of 1/2 NPT of M20x1,5P
Luchtverbinding: Rc 1/4 of 1/4 NPT of G 1/4
Markeren:

Rotork YT-3303 digital valve positioner

,

smart control valve positioner industrial

,

pneumatic control valve positioner automation
Basis informatie
Plaats van herkomst: China
Merknaam: Rotork
Modelnummer: YT-3303
Document: PUB126-001-00_1225 Rotork V...rs.pdf
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Doos + houten krat + beschermende verpakking
Levertijd: 60 dagen
Betalingscondities: T/T
Levering vermogen: 500 eenheden per jaar
Productomschrijving
Product Overview

Engineered for maximum value and precision, the Rotork YT-3303 Potentiometer-Type Smart Positioner delivers exceptional valve control with minimal air usage and simple field setup. Its microprocessor-driven Auto-Calibration and flexible PID parameters make it the smart choice for plants seeking reliability without complexity.

Key Features
  • Very low air consumption significantly reduces plant operating costs
  • Quick and easy Auto-Calibration with 4-button LCD interface
  • PID parameters adjustable on-site without external tools
  • Multiple valve characteristic curves (Linear, Quick Open, Equal %, User Set 5/18 points)
  • A/M switch for manual override and split-range operation
  • Modular design and polyester powder coating for long service life
  • Optional 4-20 mA analog output and HART communication
Technical Specifications
Parameter Specification
Input Signal 4-20 mA DC
Supply Pressure 0.14–0.7 MPa (1.4–7 bar)
Stroke Range Linear 10–150 mm / Rotary 55–110°
Linearity ±0.5 % F.S.
Hysteresis / Sensitivity ±0.5 % / ±0.2 % F.S.
Repeatability ±0.3 % F.S.
Air Consumption Below 2 LPM @ idle
Flow Capacity 70 LPM
Operating Temperature –30 to +85 °C (standard) / –40 to +85 °C (low temp)
Protection Rating IP66, Type 4X (FM)
Communication (Option) HART 7
Analog Output (Option) 4-20 mA
Applications

Suited for cost-sensitive projects in general process industries, power plants, water & wastewater treatment, and any facility requiring high-accuracy valve positioning with low maintenance.

Frequently Asked Questions

Q: How do I perform calibration?

A: Simply press the Auto-Calibration button — the positioner completes the process automatically in minutes.

Q: Can I customize the valve response curve?

A: Yes — select Linear, Quick Open, Equal Percentage, or create your own 5- or 18-point characterization.

Q: What is the typical air consumption?

A: Less than 2 LPM at idle, helping plants achieve significant energy savings.
