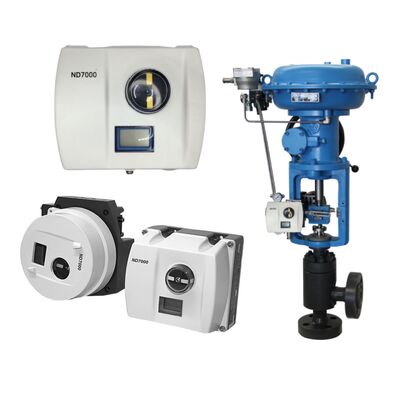

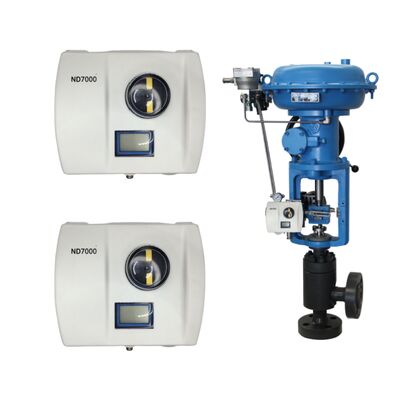

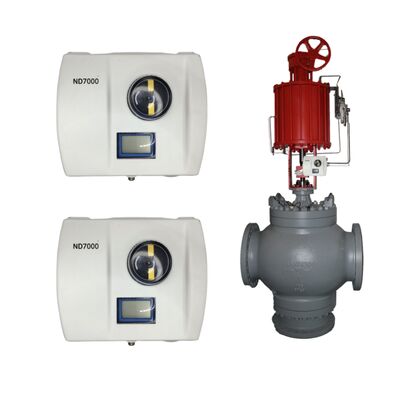

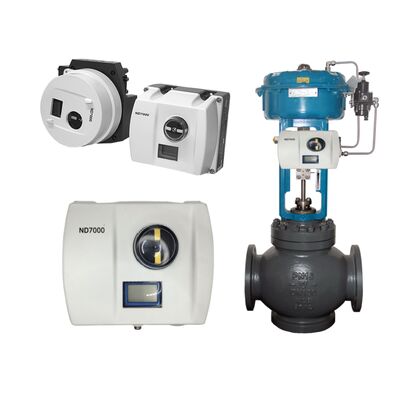

Wuzhong Instrument Control Valve with Valmet Me-tso Neles ND7000 Series Smart Valve Positioner

Neles ND7000 is an intelligent digital valve positioner designed for both rotary and linear control valves across a wide range of industrial applications. Powered by a 4–20 mA loop signal, the ND7000 delivers precise valve positioning, fast response, and reliable diagnostics to improve process efficiency and minimize variability.

The device supports single-acting and double-acting actuators and features advanced self-diagnostics, contactless position sensing, and robust IP66 protection. Its modular architecture allows easy integration with modern DCS and asset management systems through HART communication.

• Suitable for rotary and linear valves
• Compatible with single and double-acting actuators
• 4–20 mA loop-powered operation with HART communication
• Fast and accurate valve positioning
• Contactless position measurement technology
• IP66 / NEMA 4X rugged enclosure
• SIL 2 certified according to IEC 61508
• Low air consumption and low energy consumption
• Easy local and remote configuration
• Built-in diagnostics and offline testing
• Excellent vibration and temperature resistance
• Supports retrofit installations for existing valve systems

The Neles ND7000 digital valve controller is widely used in:

• Oil & Gas
• Petrochemical Plants
• Chemical Processing
• Power Generation
• Pulp & Paper Industry
• Water Treatment Systems
• Mining Operations
• Industrial Automation Systems

It is especially suitable for critical control loops requiring stable and accurate valve performance.

1. What communication protocol does the ND7000 support?

   The ND7000 supports HART communication for remote diagnostics, calibration, and configuration.

2. Can the ND7000 be used on both rotary and linear valves?

   Yes. The controller is designed for both rotary and linear valve applications.

3. Is the device suitable for hazardous areas?

   Yes. Multiple hazardous area certifications are available, including ATEX, IECEx, INMETRO, and CCC approvals.

4. Does the ND7000 require external power?

   No. The device is loop-powered through the 4–20 mA control signal.

5. What diagnostics functions are included?

   The controller includes self-diagnostics, deviation trend monitoring, counters, and offline testing functions.

• Neles ND9000
• Rotork YT-3300
• Masoneilan SVI2
