Thuis /Producten/Pneumatische bedieningskleppen/Flowserve Logix 1500 Digital Valve Positioner with HART 7 Communication IP66 NEMA 4X Protection and 4–20 mA DC Input Signal

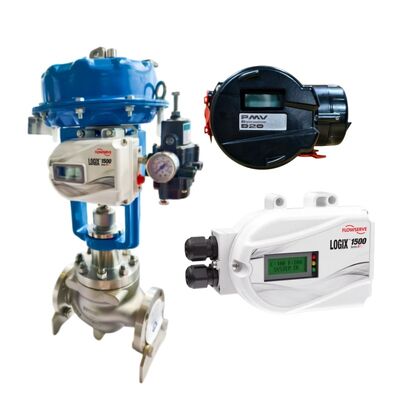

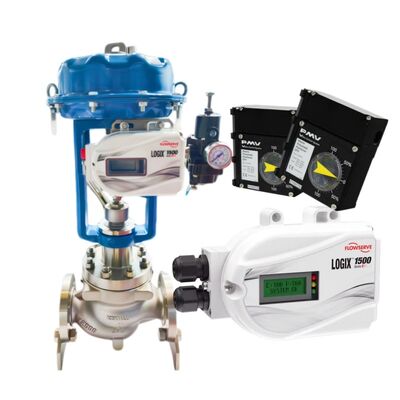

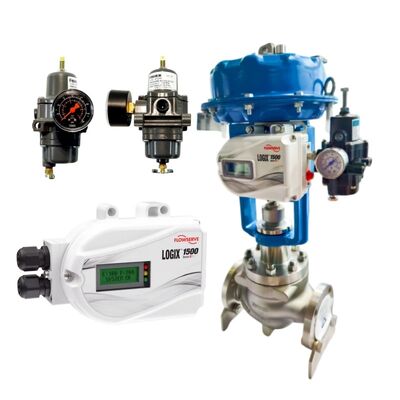

Flowserve Logix 1500 Digital Valve Positioner with HART 7 Communication IP66 NEMA 4X Protection and 4–20 mA DC Input Signal

1
MOQ
US $1785.00 - 2300.00/ Set
Prijs
Flowserve Logix 1500 Digital Valve Positioner with HART 7 Communication IP66 NEMA 4X Protection and 4–20 mA DC Input Signal
Kenmerken Galerij Productomschrijving Beoordelingen & Recensies Verzoek om een Citaat
Kenmerken
Specificaties
Ingangssignaal: 4–20 mA gelijkstroom
Mededeling: HART 7 (optioneel)
Luchttoevoerdruk: Tot 60 psi (4,1 bar)
Bedrijfstemperatuur: -40°C tot +85°C
Beschermingsklasse: IP66/NEMA 4x
Ventieltype: Enkelwerkende lineaire en roterende kleppen
Markeren:

Flowserve Logix 1500 valve positioner

,

Fisher 67DFR filter regulator

,

industrial pneumatic control valve
Basis informatie
Merknaam: Flowserve
Modelnummer: Logix 1500
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Kartonnen doos/houten kist
Levertijd: 6~8 weken
Betalingscondities: T/T
Levering vermogen: 1500 sets per jaar
Productomschrijving

Product Overview

The Flowserve Logix 1500 digital positioner provides accurate pneumatic valve control using HART protocol. It features reliable piezo technology and simple local operation, making it suitable for standard process applications that require a balance of performance and affordability.

Technical Specifications

Parameter Specification
Input Signal 4–20 mA DC + HART
Supply Air Pressure 2–10 bar
Air Consumption Low
Linearity < ±1.0% FS
Repeatability < 0.2% FS
Operating Temperature –40 °C to +80 °C
Enclosure NEMA 4X / IP66
Housing Aluminum

Application Industry

  • Chemical and petrochemical
  • Power utilities
  • Oil & gas
  • General manufacturing
  • Industrial valve control

Common Problems & Solutions

  • Problem: Air quality affecting performance → Solution: Recommended clean, dry air supply
  • Problem: Setup complexity → Solution: Local calibration interface
  • Problem: Environmental exposure → Solution: Robust enclosure design

Replacement Models

  • Previous generation Logix positioners
  • Higher series models for advanced diagnostics

Why Buy From Us

  • Authentic Flowserve product
  • Good value and technical support
  • Help with calibration and tuning
  • Spare parts availability

Stock & Delivery Time

  • Common models: 6–10 weeks
  • Configured versions: 8–14 weeks

RFQ Form

  1. Valve and actuator details
  2. Supply air pressure
  3. Area classification
  4. Quantity & delivery timeline
